When it comes to ensuring the safety and effectiveness of your electrical system, the placement of a ground rod is crucial. A ground rod, also known as a grounding rod, is an essential component that helps protect your home or building from electrical faults and lightning strikes. But where should a ground rod be placed to maximize its efficiency? In this article, we will delve into the best practices for placing a ground rod, ensuring that your electrical system remains safe and functional.
A ground rod serves as a direct path for electrical currents to safely dissipate into the earth. This is particularly important in preventing electrical shocks, fires, and damage to electrical appliances. By providing a low-resistance path to the ground, a ground rod ensures that any excess electrical energy is safely redirected away from your home or building.
The effectiveness of a ground rod largely depends on the soil conditions where it is placed. Ideally, the soil should be moist and have a low resistivity. Clay and loamy soils are excellent for grounding purposes, while sandy or rocky soils may require additional measures to ensure proper grounding. If the soil is too dry, consider watering the area around the ground rod to improve conductivity.
For optimal performance, the ground rod should be placed as close to the electrical panel as possible. This minimizes the length of the grounding conductor, reducing the risk of voltage drops and ensuring a more efficient grounding system. Typically, a distance of 6 to 8 feet from the electrical panel is recommended.
The depth at which a ground rod is installed plays a significant role in its effectiveness. A ground rod should be driven at least 8 feet into the ground to ensure it reaches a depth with consistent moisture levels. Additionally, the rod should be installed vertically or at a slight angle, not exceeding 45 degrees, to maximize contact with the soil.
When placing a ground rod, it is essential to maintain a safe distance from other grounding systems, such as water pipes, gas lines, and other electrical grounding rods. A minimum distance of 6 feet is recommended to prevent interference and ensure each grounding system functions independently.
Select a location that meets the soil conditions, proximity to the electrical panel, and distance from other grounding systems as discussed earlier. Ensure the area is free from obstructions and easily accessible for installation.

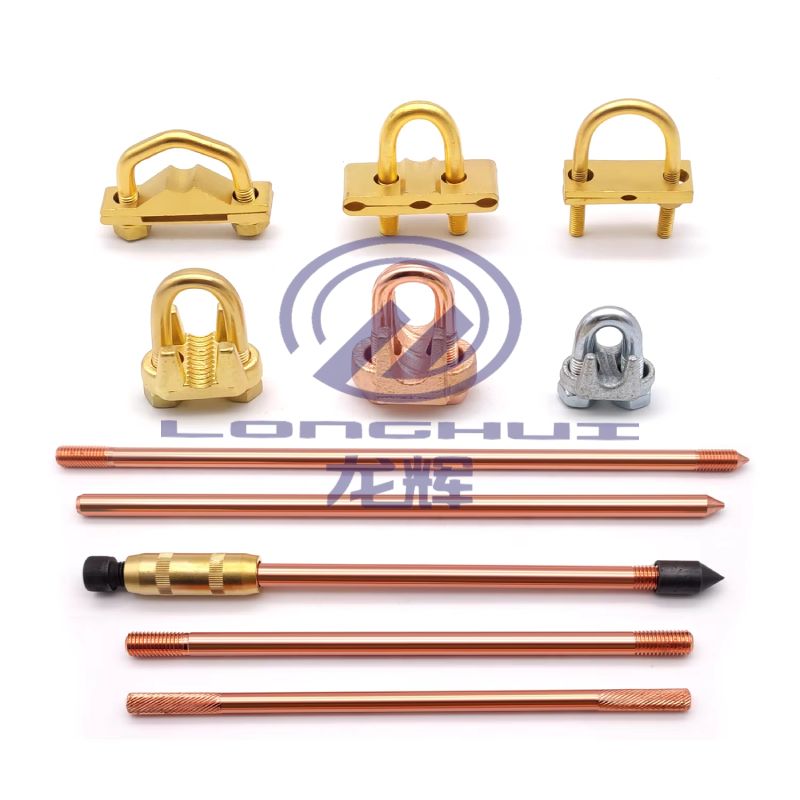

Ground rods are typically made of copper or galvanized steel and come in lengths of 8 to 10 feet. Ensure the rod is free from any coatings or materials that may hinder its conductivity.
Using a sledgehammer or a ground rod driver, drive the rod into the ground at the chosen location. If the soil is particularly hard, you may need to dig a pilot hole to get started. Continue driving the rod until only a few inches remain above ground.
Attach a grounding clamp to the exposed top of the ground rod. Connect the grounding conductor from the electrical panel to the clamp, ensuring a secure and tight connection. Use a wrench to tighten the clamp and verify that the connection is stable.
Regular maintenance of your ground rod is essential to ensure its continued effectiveness. Periodically check the connection between the grounding conductor and the ground rod for any signs of corrosion or looseness. Additionally, inspect the surrounding soil conditions and water the area if necessary to maintain optimal conductivity.
Proper placement and installation of a ground rod are vital for the safety and efficiency of your electrical system. By considering factors such as soil conditions, proximity to the electrical panel, and maintaining a safe distance from other grounding systems, you can ensure that your ground rod functions effectively. Regular maintenance and inspection will further guarantee the longevity and reliability of your grounding system. With these best practices in mind, you can confidently protect your home or building from electrical hazards.
