In the world of electrical wiring, there are various types of conductors used for different applications. Two of the most common types are ribbon wire and round wire. While both serve the purpose of conducting electricity, they have distinct characteristics that set them apart. In this article, we will explore the differences between ribbon and round wire, helping you make an informed decision for your specific needs.
Ribbon wire, also known as flat wire, is a type of electrical conductor that has a flat and rectangular cross-section. It is typically made from copper or aluminum and is widely used in applications where space is a constraint. Ribbon wire is commonly used in high-frequency circuits, transformers, and other electronic devices that require a compact and efficient conductor.
One of the main advantages of ribbon wire is its ability to provide a larger surface area for heat dissipation. This makes it an excellent choice for applications where heat generation is a concern. Additionally, ribbon wire’s flat shape allows for better skin effect, which is the tendency of alternating current to concentrate near the surface of a conductor. This property makes it particularly suitable for high-frequency signals.

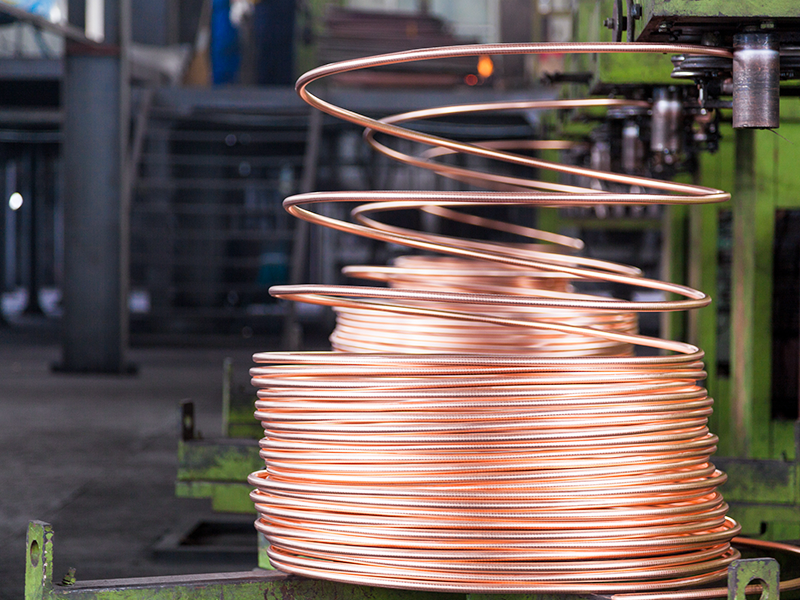

Round wire, as the name suggests, is a type of electrical conductor with a round cross-section. It is the most common type of wire used in various applications, including residential and commercial wiring, electrical appliances, and electronic devices. Round wire is typically made from copper or aluminum and can be insulated or uninsulated, depending on the application.
One of the main advantages of round wire is its flexibility, which makes it easy to install and route in different configurations. It is also widely available in various sizes and gauges, making it suitable for a wide range of applications. Round wire is known for its good mechanical strength and durability, making it a reliable choice for most electrical installations.
Shape and cross-section: The most obvious difference between ribbon and round wire is their shape. Ribbon wire has a flat and rectangular cross-section, while round wire has a circular cross-section. This difference in shape affects their physical properties and applications.
Surface area: Ribbon wire has a larger surface area compared to round wire of the same cross-sectional area. This larger surface area allows for better heat dissipation, making ribbon wire more suitable for applications where heat generation is a concern.
Skin effect: Due to its flat shape, ribbon wire experiences a more pronounced skin effect, which is beneficial for high-frequency signals. Round wire, on the other hand, has a less pronounced skin effect, making it more suitable for low-frequency applications.
Flexibility: Round wire is generally more flexible than ribbon wire, making it easier to install and route in various configurations. Ribbon wire, being flat, is less flexible and may require special handling during installation.
Applications: Ribbon wire is commonly used in high-frequency circuits, transformers, and other electronic devices where space is a constraint. Round wire, on the other hand, is widely used in residential and commercial wiring, electrical appliances, and general-purpose electronic devices.
In conclusion, ribbon wire and round wire are two distinct types of electrical conductors with their own unique characteristics and applications. Understanding the differences between them can help you make an informed decision when choosing the right wire for your specific needs. Whether you require a compact and efficient conductor or a flexible and durable one, both ribbon and round wire have their place in the world of electrical wiring.
