Exothermic welding is a widely used process in the electrical and grounding industry. It is particularly popular among factories, distributors, and channel partners due to its ability to create high-quality, permanent electrical connections. This method is crucial in grounding systems, especially when working with copper-bonded steel ground rods, round conductors, and other grounding materials.
In this article, we will explore the step-by-step process of performing exothermic welding, the equipment required, and best practices to ensure a successful weld. Whether you're a factory worker, distributor, or channel partner, understanding how to perform exothermic welding will help you ensure the safety and reliability of your electrical grounding systems.
Before diving into the process, it's important to note that an Exothermic welding system is essential for this procedure. This system includes a graphite mold, welding powder, handle clamps, and other accessories that ensure a proper weld. Let's begin by understanding the basics of exothermic welding.
Exothermic welding, also known as thermite welding, is a chemical process that creates a permanent bond between two metal conductors. The process involves using a mixture of aluminum powder and metal oxide to produce a molten metal that fuses the conductors together. The reaction is highly exothermic, meaning it releases a large amount of heat, which is why it is called "exothermic welding."
The key advantage of exothermic welding is that it produces a molecular bond that is stronger than the metals being joined. This makes it ideal for grounding systems where a long-lasting, corrosion-resistant connection is required. The resulting joint is highly conductive and can withstand extreme environmental conditions, including moisture and temperature fluctuations.
Grounding systems are essential for protecting electrical equipment and personnel from electrical faults. A proper grounding system ensures that any excess electrical current is safely dissipated into the earth, preventing damage to equipment and reducing the risk of electrical shock. In these systems, the quality of the connections between the grounding conductors is critical.
Exothermic welding is the preferred method for creating these connections because it produces a permanent, high-conductivity bond. Unlike mechanical connections, which can loosen over time due to vibration or corrosion, exothermic welds are molecular bonds that will not degrade. This makes them ideal for use in grounding systems, where reliability and longevity are paramount.
Before starting the exothermic welding process, it's essential to gather all the necessary equipment. The basic components of an Exothermic welding system include:
Graphite mold
Welding powder (thermite powder)
Handle clamps

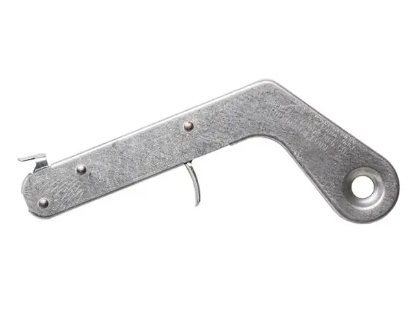

Igniter
Cleaning tools (wire brush, mold scraper)
Protective gear (gloves, goggles, and fire-resistant clothing)
Ensure that all equipment is in good condition and that you have the correct size mold for the conductors you are welding. The mold should be free of any debris or moisture, as this can affect the quality of the weld.
The next step is to prepare the conductors that will be welded together. This involves cleaning the surfaces of the conductors to remove any dirt, grease, or oxidation. Use a wire brush or sandpaper to clean the ends of the conductors thoroughly. This step is crucial because any contaminants on the surface can weaken the weld.
Once the conductors are clean, position them in the graphite mold. The mold is designed to hold the conductors in place and shape the molten metal during the welding process. Make sure the conductors are properly aligned in the mold to ensure a strong, even weld.
With the conductors in place, close the mold and secure it with the handle clamps. The mold should be tightly closed to prevent any molten metal from leaking out during the welding process. Once the mold is secure, add the appropriate amount of welding powder to the mold's crucible.
The amount of welding powder required will depend on the size of the conductors and the type of connection being made. Consult the manufacturer's instructions for the correct amount of powder to use. After adding the powder, place the ignition material on top of the powder.
Once the mold is assembled and the welding powder is in place, it's time to ignite the powder. Use the igniter to start the exothermic reaction. The reaction will produce intense heat, which will melt the welding powder and create molten metal. This molten metal will flow into the mold and fuse the conductors together.
It's important to stand back and avoid looking directly at the reaction, as it produces a bright flash of light and intense heat. The reaction will only take a few seconds, but it's essential to allow the mold to cool completely before opening it.
After the mold has cooled, carefully remove the handle clamps and open the mold. The conductors should now be fused together with a solid, high-conductivity weld. Inspect the weld to ensure that it is smooth and free of any cracks or voids. A good exothermic weld will have a uniform appearance and will completely encase the conductors.
If the weld appears to be incomplete or has any defects, it may be necessary to repeat the process. It's important to address any issues with the weld immediately, as a faulty connection can compromise the integrity of the grounding system.
Using the correct equipment is essential for a successful exothermic weld. Make sure you are using a high-quality Exothermic welding system that includes all the necessary components, such as a graphite mold, welding powder, and handle clamps. Additionally, ensure that the mold is the correct size for the conductors you are welding.
Proper surface preparation is critical to the success of the weld. Always clean the conductors thoroughly before welding to remove any dirt, grease, or oxidation. Failure to clean the conductors can result in a weak weld that may fail over time.
Exothermic welding involves high temperatures and molten metal, so it's important to follow all safety protocols. Always wear protective gear, including gloves, goggles, and fire-resistant clothing. Keep a safe distance from the mold during the welding process, and never attempt to open the mold until it has cooled completely.
After completing the weld, inspect it carefully to ensure that it is free of defects. A good weld will have a smooth, uniform appearance and will completely encase the conductors. If you notice any issues with the weld, such as cracks or voids, it may be necessary to repeat the process.
Exothermic welding is a reliable and effective method for creating permanent electrical connections in grounding systems. By following the steps outlined in this guide and using a high-quality Exothermic welding system, you can ensure that your welds are strong, conductive, and long-lasting.
For factories, distributors, and channel partners, mastering the exothermic welding process is essential for maintaining the safety and reliability of electrical grounding systems. By adhering to best practices and using the right equipment, you can achieve consistent, high-quality results that will stand the test of time.
